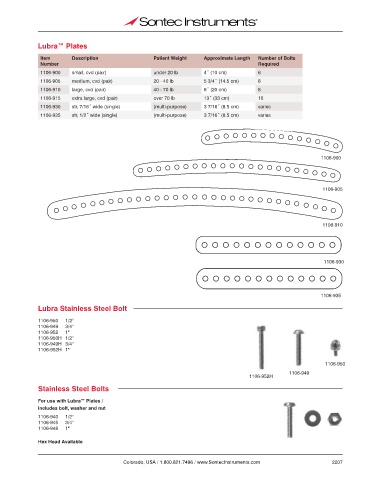

Lubra™ Plates
Item Description Patient Weight Approximate Length Number of Bolts
Number Required
1106-900 small, cvd (pair) under 20 lb 4˝ (10 cm) 6
1106-905 medium, cvd (pair) 20 - 40 lb 5 3/4˝ (14.5 cm) 8
1106-910 large, cvd (pair) 40 - 70 lb 8˝ (20 cm) 8
1106-915 extra large, cvd (pair) over 70 lb 13˝ (33 cm) 10
1106-930 str, 7/16˝ wide (single) (multi-purpose) 3 7/16˝ (8.5 cm) varies
1106-935 str, 1/2˝ wide (single) (multi-purpose) 3 7/16˝ (8.5 cm) varies

1106-900

1106-905

1106-910

1106-930

1106-935

Lubra Stainless Steel Bolt

1106-950 1/2"
1106-949 3/4"
1106-952 1"
1106-950H 1/2"
1106-949H 3/4"
1106-952H 1"
1106-950
1106-949
1106-952H
Stainless Steel Bolts

For use with Lubra™ Plates /
includes bolt, washer and nut
1106-940 1/2"
1106-945 3/4"
1106-946 1"
Hex Head Available
